Oelschläger Metalltechnik GmbH

FREE.STAND 9042

In addition to its proven SST technology, the FREE.STAND 9042 impresses above all with the dimensions of the work surfaces that can be achieved with this frame system.

DYNAMIC COMMUNICATION
This solution is thus ideally designed for conference and team workplaces. The four parallel-connected drives effortlessly adjust this classically designed all-rounder to any desired working height.

Download PDF data sheet

Technical data

  • Table frame dimensions Depth: 800 - 2800 mm
    Wide: 800 - 9600 mm
  • Table frame load 100 kg
  • Stroke 500 mm
    600 mm
  • Power consumption On operation: 118 W
    On standby: <0,3 Watt
  • Noise level ≤ 42 dB
  • Speed 38 mm/s
  • Frame color RAL 7016 - Anthracite gray
    RAL 9002 - Gray white
    RAL 9003 - Signal white
    RAL 9004 - Signal black
    RAL 9006 - White aluminum
  • Adjustment system 720-1220 mm
    650-1250 mm
  • Quantity of columns depending on table size
    4 - 12 pieces

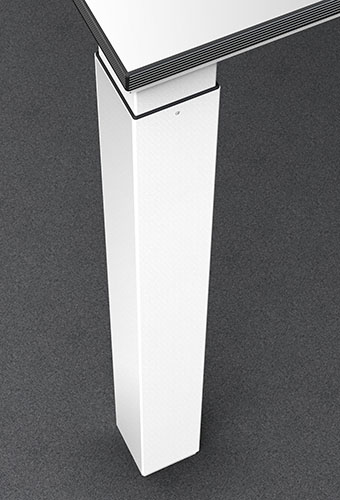

Columns

  • Square (SQ)
    70 / 65 mm BUP
    75 / 70 / 65 mm BUP

YOU HAVE THE CHOICE

Would you like to learn more about OMT product development or would you like a discussion in person?
Call us or send us an e-mail.

phone: +49 (0)4251 816-0
E-Mail: info@oelschlaeger.de
